Variable Frequency Drive

Product name: Variable Frequency Drive

Size（capacity）:
160106154mm（0.5KW）160106154mm（3KW）220115164mm（5.5KW）248160196mm（7.5KW）248160196mm（11KW）600387296mm（55KW）700475310mm（93KW）

Weight:1.15KG（0.5KW）/1.75KG（3KW）/3.45KG（5.5KW）/3.45KG（7.5KW）/3.5KG（11KW）/36.7KG（55KW）/43.3KG（93KW）

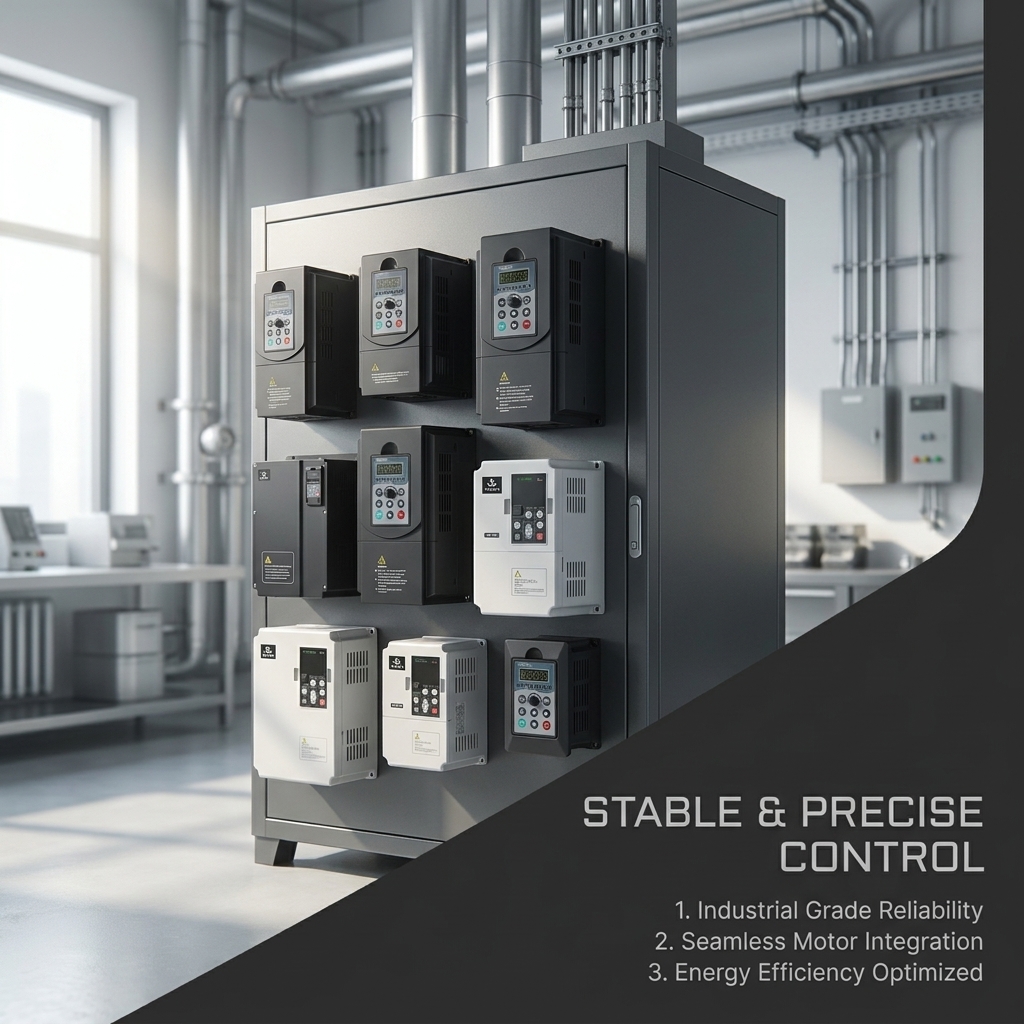

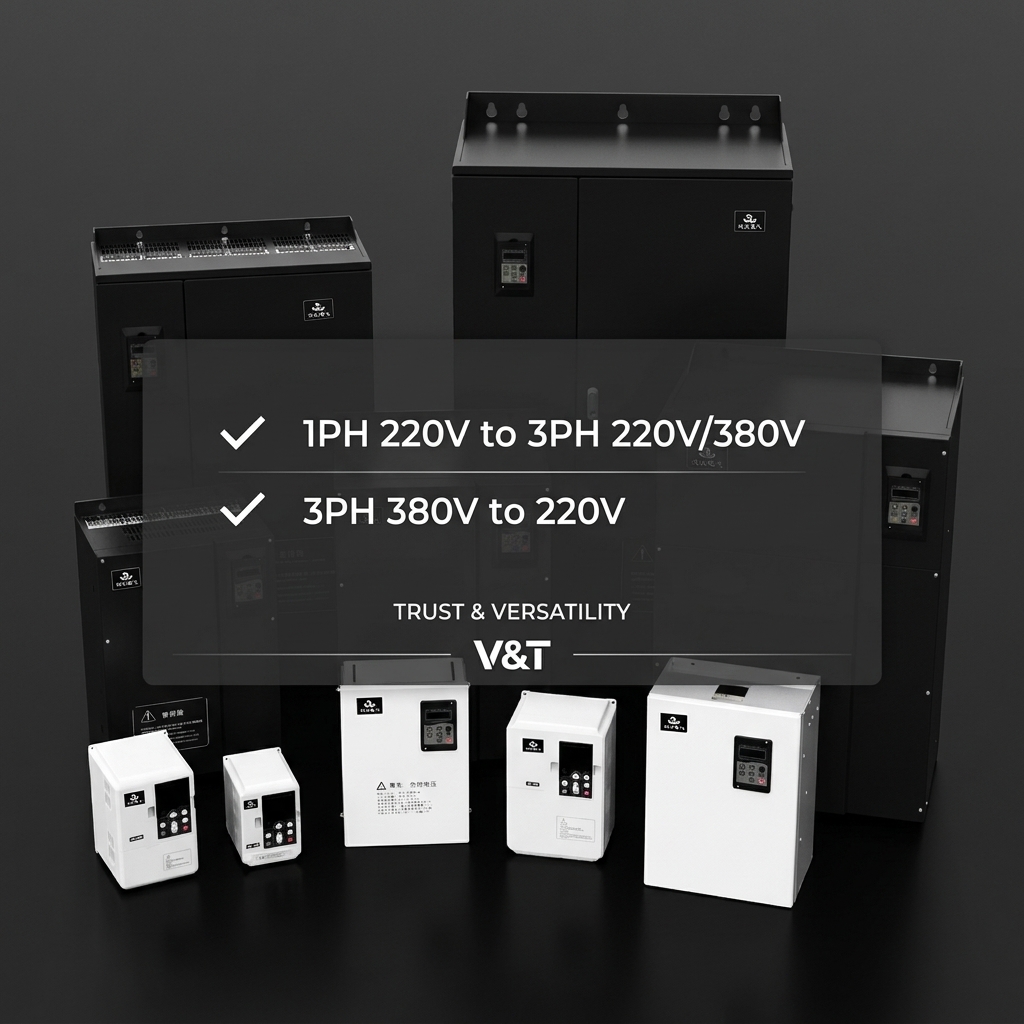

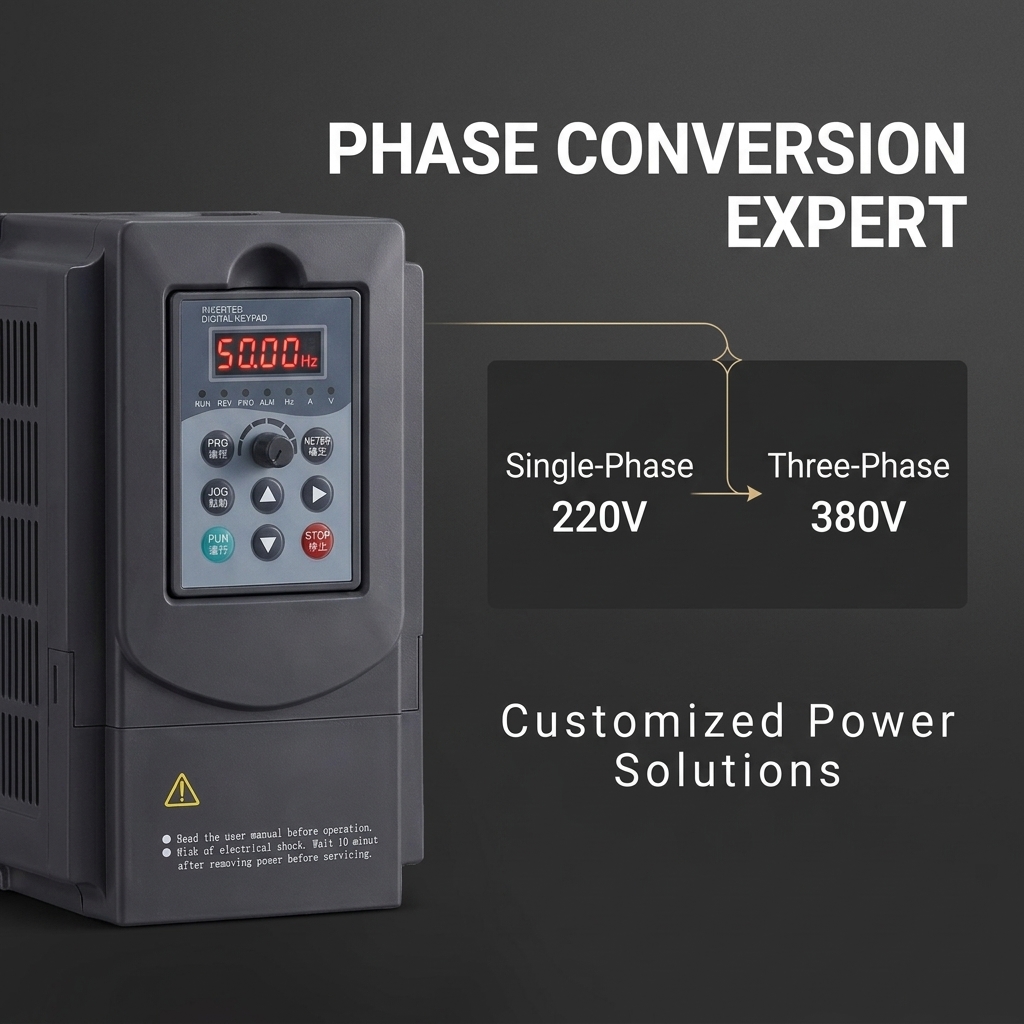

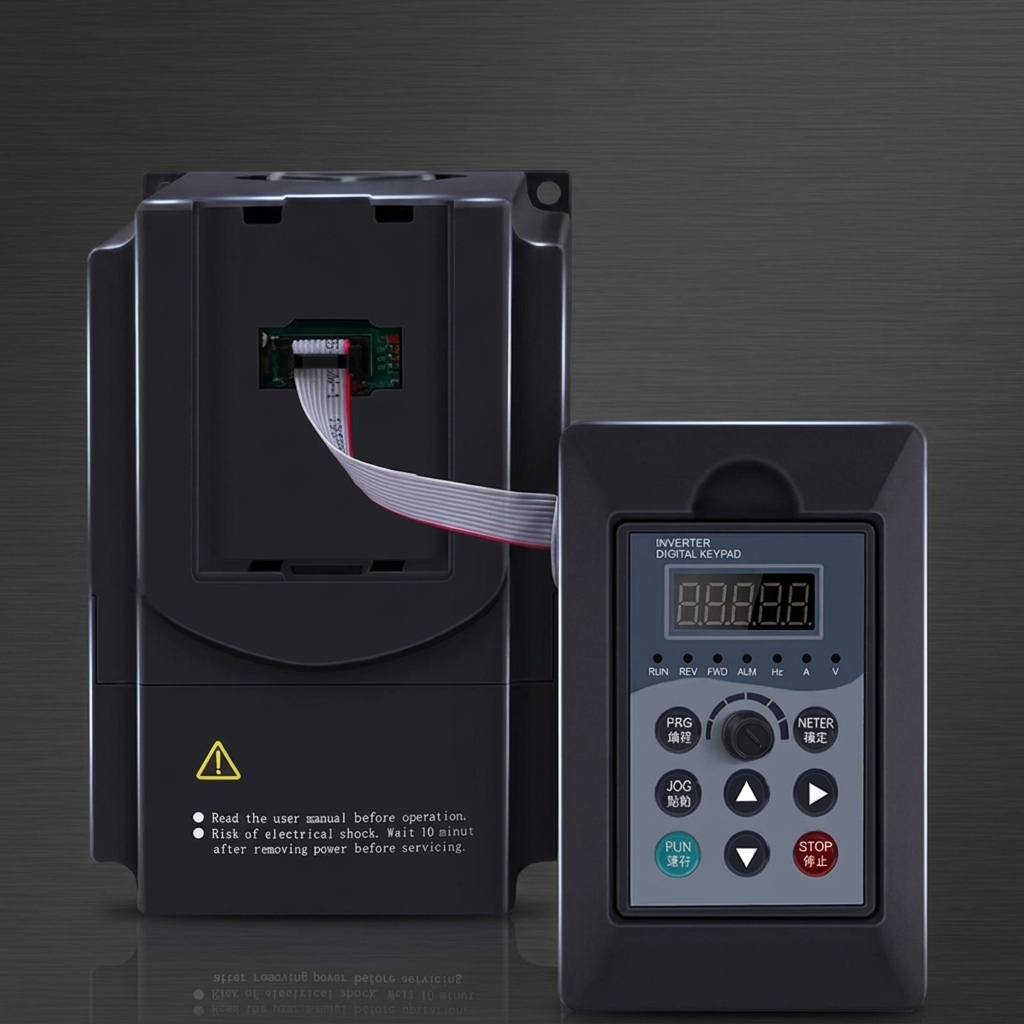

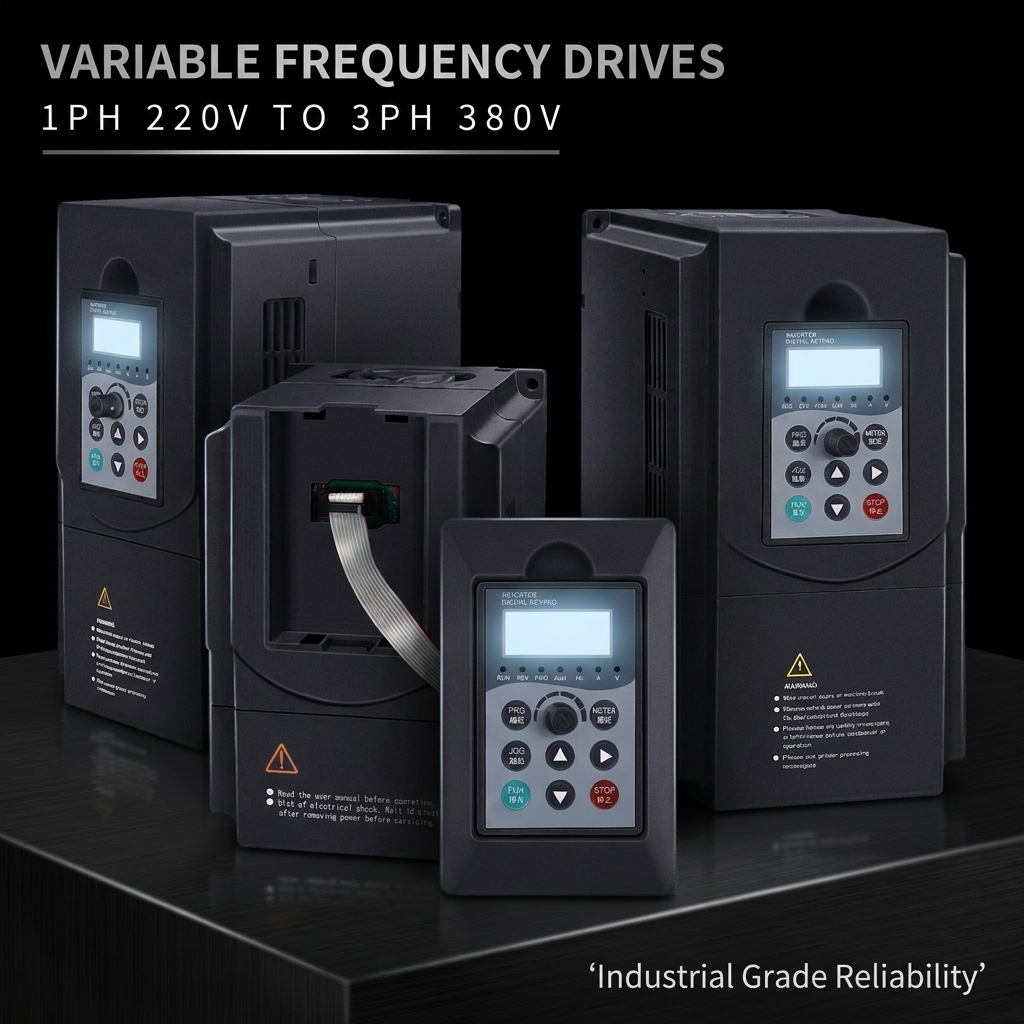

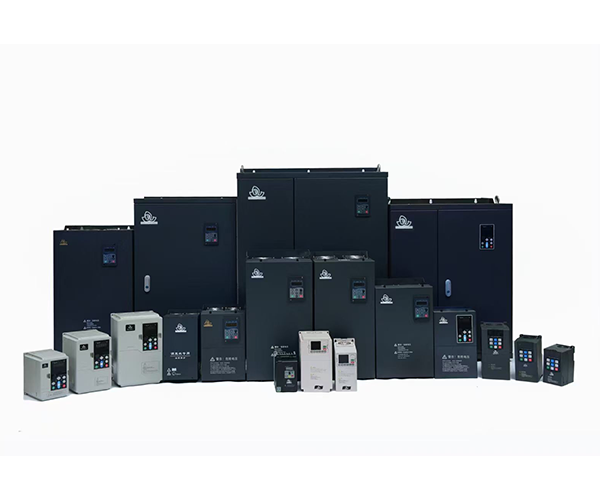

Product Display

Product Description

Variable Frequency Drive (VFD) is a kind of power electronic equipment that realizes precise control of motor speed and operating status by changing the frequency and voltage of the power supply. It is widely used in industrial automation, motor control and energy-saving transformation.

1. Input Voltage: 220V / 380V (Single-phase or Three-phase)
2. Output Voltage: 220V / 380V (Adjustable)
3. Output Frequency: 0–400Hz
4. Control Mode: V/F Control, Vector Control
5. Power Range: 0.75kW – 500kW (Customizable)
6. Protection Class: IP20 / IP54 (Optional)

Application

Frequency converter is a control device that converts fixed frequency power supply (such as 50Hz/60Hz) into adjustable frequency power supply. By adjusting the output voltage and frequency, it can realize the stepless speed regulation, soft start, energy-saving operation and intelligent control of the motor.
